Voltstair SteadyLift Self Balancing Electric Stair Climber, 551 lb.
Our Price: To Access Pricing and Wholesale discounts. Please Register

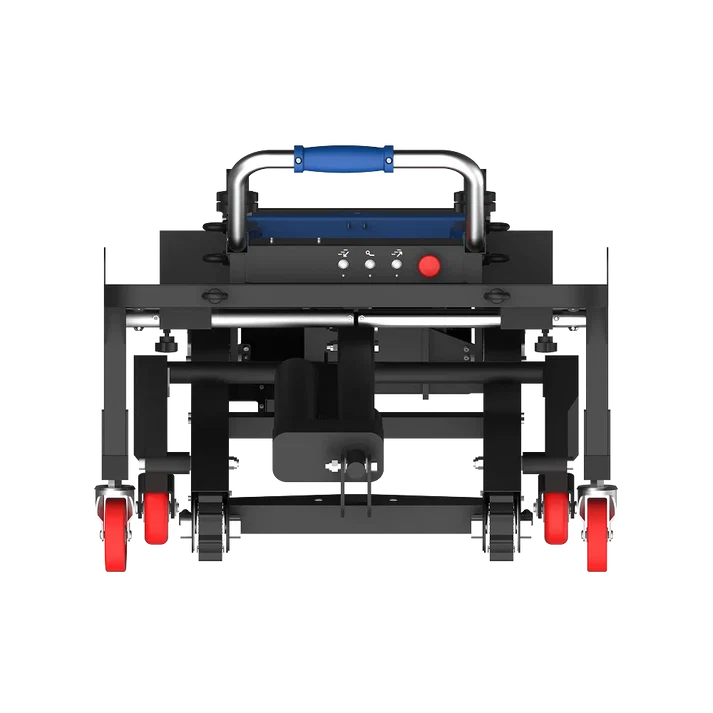

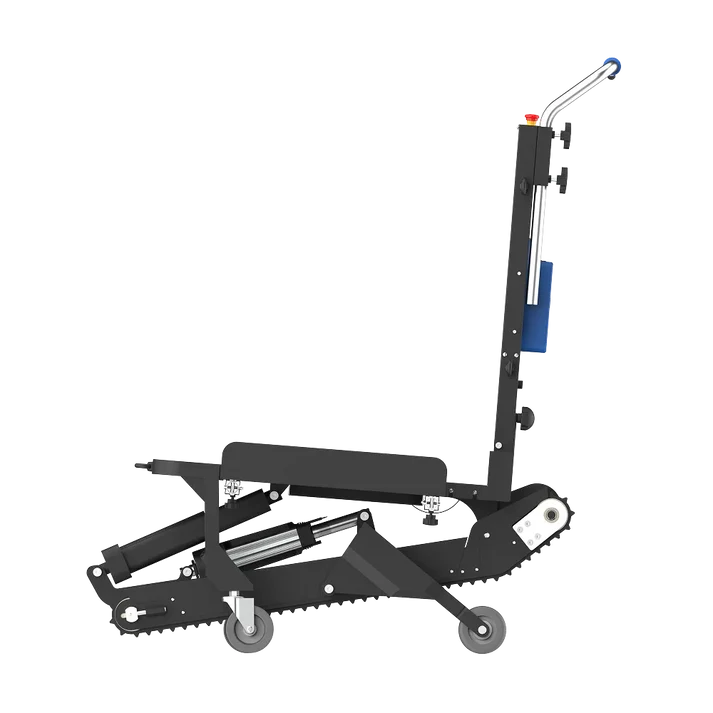

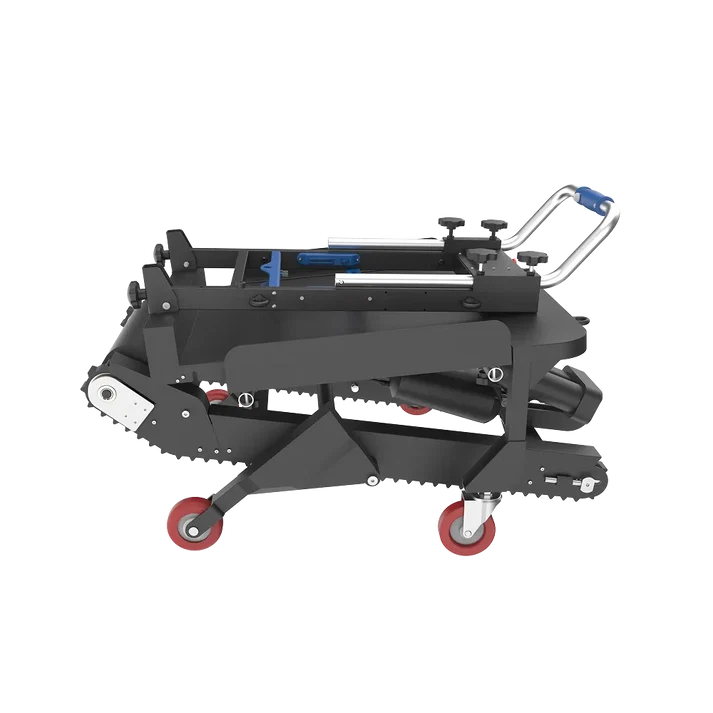

Voltstair SteadyLift Self Balancing Electric Stair Climber
The Voltstair SteadyLift is a heavy duty electric stair climber designed to move loads up to 551 lbs. while automatically maintaining the load angle during stair travel. A precision gyroscope sensor continuously detects the unit's attitude and adjusts the loading platform to keep cargo level during climbing, descending and landing transitions. A 48V 500W brushless motor provides climbing speeds of up to 43 steps per minute.

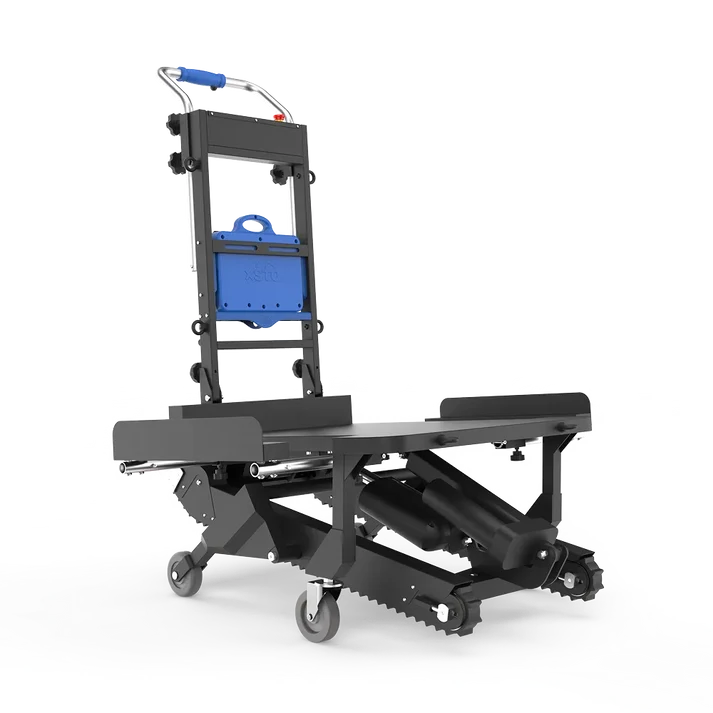

551 lb. Load Capacity with Self-Balancing Technology
The SteadyLift combines high load capacity with automatic self-balancing operation. Instead of requiring the operator to continuously manage the load angle, the built-in gyroscope sensor monitors the machine's position and automatically adjusts the platform. This helps maintain a level load as the unit travels through a stairwell and transitions onto landings.
- Load capacity: 551 lbs. (250 kg)
- Motor: 48V 500W brushless
- Balancing system: Precision gyroscope sensor with automatic self-balancing
- Maximum load width: 43.7 inches (1,110 mm)

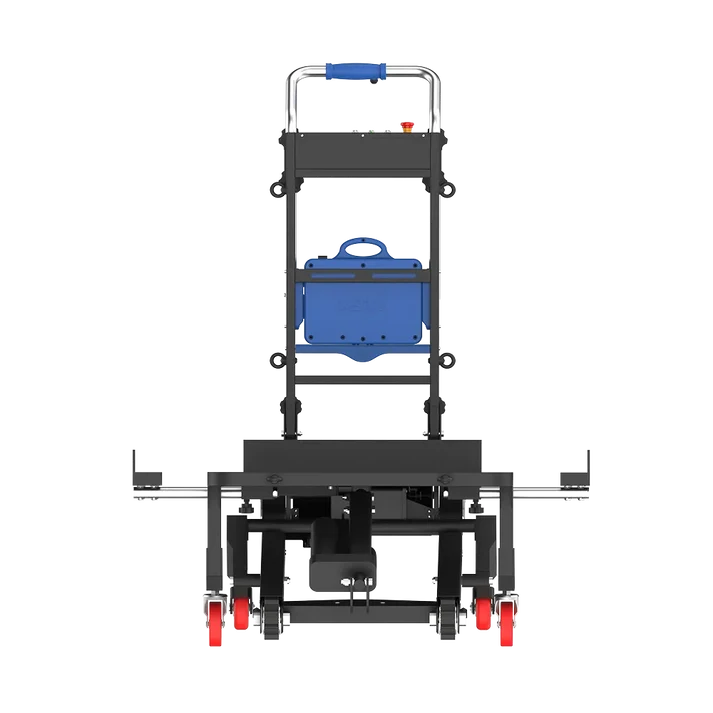

Gyroscope-Controlled Load Balancing
The precision gyroscope continuously reads the SteadyLift's attitude while the machine is moving. The automatic balancing system adjusts the platform to help keep cargo level throughout the climb, descent and landing transition. This design reduces the need for the operator to manually counterbalance the load while navigating stairs.
Fast Stair Climbing and Descending
The 48V 500W brushless motor delivers a climbing speed of up to 43 steps per minute and a descending speed of up to 53 steps per minute. At these maximum rates, a standard 16-step flight can be traversed quickly, helping support efficient movement of heavy equipment between floors.
- Climbing speed: Up to 43 steps per minute
- Descending speed: Up to 53 steps per minute
- Battery endurance: Up to 1,504 steps per charge
- Equivalent flight range: Up to 94 flights based on a standard 16-step flight

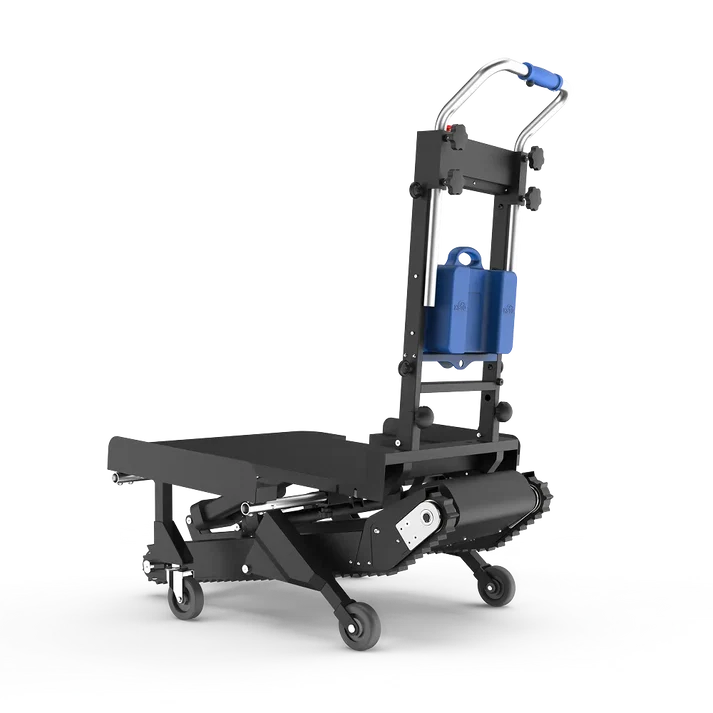

Retractable Loading Platform
The retractable loading platform adjusts to different load sizes, allowing the SteadyLift to accommodate a variety of boxes, cases and appliances. The platform dimensions range from 27.56 inches to 43.3 inches in width, providing flexibility when handling different cargo footprints.
Support for Stair and Landing Transitions
Support wheels assist the SteadyLift during transitions at the top and bottom of a staircase, while automatic landing support helps guide the machine onto level ground. These features work alongside the self-balancing system to support controlled movement through the full stair route.
Check Stairwell Dimensions Before Purchase
The SteadyLift is designed for stairways with step heights up to 8.3 inches and stair angles between 25 and 33 degrees. A minimum turning landing of approximately 51.2 x 51.2 inches is required. Measure the narrowest stairway, landing and turning area along the intended route before using the equipment.
- Maximum step height: 8.3 inches (210 mm)
- Stair angle range: 25 to 33 degrees
- Minimum turning landing: 51.2 x 51.2 inches (1,300 x 1,300 mm)
- Maximum load width: 43.7 inches (1,110 mm)
Stairs and Flat Ground in One Unit
The SteadyLift is designed to handle both stair climbing and flat-ground travel. Simple controls allow the operator to switch between travel modes, making the unit suitable for routes that include stairs as well as level surfaces between loading areas and stairwells.
Heavy Duty Construction for Professional Use
The SteadyLift weighs 165 lbs. and is designed for demanding commercial and institutional applications. Its operating noise level is under 70 dB, while the IP33 protection grade provides protection against solid objects and vertically falling water under the specified conditions. No assembly is required before use.
- Unit weight: 165 lbs. (75 kg)
- Noise level: Under 70 dB
- Protection grade: IP33
- Assembly: No assembly required
Applications for the Voltstair SteadyLift
The Voltstair SteadyLift is designed for professional teams that need to transport heavy equipment through stairwells. Potential applications include appliance and commercial kitchen equipment installation, safe and vault delivery, moving and relocation, logistics and warehouse operations, medical and imaging equipment handling, facilities management, and government or institutional maintenance.
Buy with Confidence
- Lifetime warranty on frame welds for structural integrity.
- Covered parts are warranted for 180 days from the date of purchase.
- Battery warranty coverage is 6 months.
- Limited warranty coverage applies to defects in materials and workmanship under normal use.
- US-based product support.
Frequently Asked Questions
The Voltstair SteadyLift supports loads up to 551 lbs. (250 kg). Its 48V 500W brushless motor and self-balancing platform are designed for transporting heavy equipment, appliances, safes, commercial kitchen equipment and other loads through stairwells.
The SteadyLift uses a precision gyroscope sensor to continuously detect the machine's attitude while it moves. The system automatically adjusts the loading platform to help keep cargo level during climbing, descending and landing transitions, reducing the need for the operator to manually counterbalance the load.
The SteadyLift can climb at speeds of up to 43 steps per minute and descend at up to 53 steps per minute. Its battery provides up to 1,504 steps per charge, equivalent to approximately 94 flights when calculated using a standard 16-step flight.
The SteadyLift is designed for stairs with step heights up to 8.3 inches and stair angles between 25 and 33 degrees. A minimum turning landing of approximately 51.2 x 51.2 inches is required. The maximum supported load width is 43.7 inches, so the complete route should be measured before operation.
Yes. The SteadyLift is designed to handle both stair climbing and flat-ground travel. The operator can switch between travel modes using the unit's controls, allowing loads to be moved between loading areas, level surfaces and stairwells without requiring separate transport equipment.
The Voltstair SteadyLift weighs approximately 165 lbs. (75 kg). It has an operating noise level below 70 dB, an IP33 protection grade and requires no assembly before use. Its heavy-duty design is intended for professional commercial and institutional applications involving frequent transport of heavy equipment.
