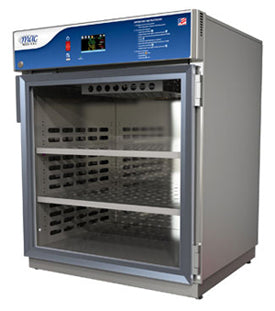

TS-SERIES Blanket & Fluid Warming Cabinets Model # SWC243036-TS

TS-Series Touch Screen Blanket & Fluid Warming Cabinet

The TS-Series Blanket & Fluid Warming Cabinet (Model SWC243036-TS) delivers advanced warming performance with full Ethernet and Wi-Fi connectivity. Designed for modern healthcare environments, this cabinet enables remote monitoring, control, and data access through secure network connections.

With intuitive touch screen operation, multi-level user security, and comprehensive alarm and audit logging, the TS-Series offers a powerful balance of technology, reliability, and long-term value.

Standard Features

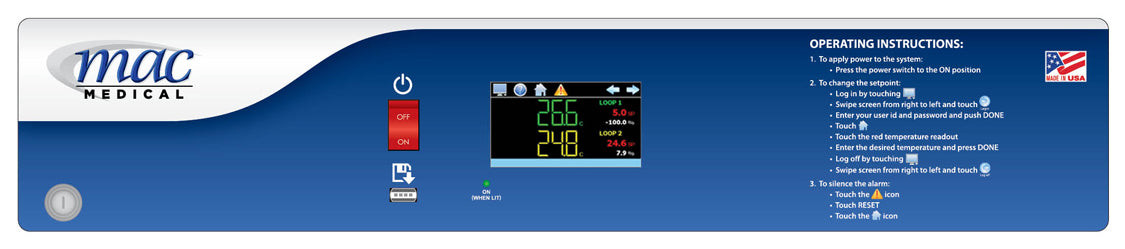

• Intuitive touch screen control interface
• Multi-language software support
• Data logging with digital signatures
• Electronic temperature lockout
• Live temperature trend viewing
• Alarm logging and alerts
• Multi-level user security
• Operator audit trail
• Built-in Ethernet connectivity
• Wi-Fi capability (router supplied by end user)
• Remote monitoring and control via VNC
• Remote technical support and diagnostics
• Text and email alarm notifications
• USB or FTP web-based file transfer
• Smartphone and device access

Optional Features

• Full-view glass door
• Left-hand door hinge
• 220/240V power supply
• Celsius temperature display
• Two recessed unit options
• Seismic braces
• Pass-through chamber
• Electronic keypad lock
• Sloping top
• Keyed door lock for lower chamber units

Accessories (Sold Separately)

• Mobile Stands
• Mobile Cabinet Stands
• Mobile Bases
• Roll Out Baskets

Specifications

Overall Size
26.5?D × 30?W × 36.5?H
(673.1 mm × 762 mm × 927 mm)

Chamber Interior Dimensions
23?D × 26?W × 25?H
(584.2 mm × 660.4 mm × 635 mm)

Storage Capacity
8.65 cubic feet
Includes 2 adjustable shelves

Temperature Range
90°–160°F (Tolerance ±2°F)

Electrical
120V, 6.3 Amp, 50/60 Hz
0.45 kWh (Average)
1535 BTU/hr (Average)
