TS-SERIES Blanket & Fluid Warming Cabinets Model # SWC243024-TS

TS-Series Touch Screen Blanket & Fluid Warming Cabinet

The TS-Series Blanket & Fluid Warming Cabinet (Model SWC243024-TS) delivers advanced temperature management with full remote connectivity. Designed for modern healthcare environments, this cabinet allows staff to monitor, control, and log warming data from virtually anywhere using Ethernet or Wi-Fi connectivity.

Featuring intuitive touch screen controls and multi-level user security, the TS-Series provides reliable warming performance while supporting compliance, audit trails, and remote diagnostics.

Standard Features

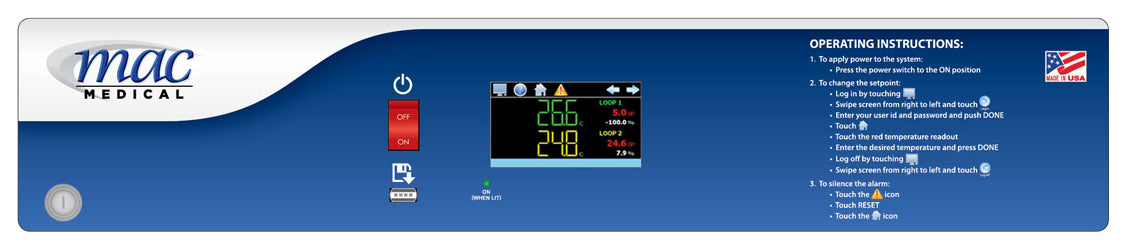

• Intuitive touch screen control interface
• Multi-language software support
• Data logging with digital signatures
• Electronic temperature lockout
• Live temperature trend viewing
• Alarm logging and alerts
• Multi-level user security and operator audit trail
• Built-in Ethernet connectivity
• Wi-Fi capability (router supplied by end user)
• Remote monitoring and control via VNC
• Remote technical support and diagnostics
• Text and email alarm notifications
• USB or FTP web-based file transfer
• Smartphone and device access

Optional Features

• Full-view glass door
• Left-hand door hinge
• 220/240V power supply
• Celsius temperature display
• Two recessed unit options
• Seismic braces
• Pass-through chamber
• Electronic keypad lock
• Sloping top
• Keyed door lock for lower chamber units

Accessories (Sold Separately)

• Mobile Stand (MS2430)
• Mobile Cabinet Stand (WBC2430)
• Roll Out Basket (WB2430)

Specifications

Overall Size
26.5?D × 30?W × 24.5?H
(673.1 mm × 762 mm × 622.3 mm)

Chamber Interior Dimensions
23?D × 26?W × 15.25?H
(584.2 mm × 660.4 mm × 387.3 mm)

Storage Capacity
5.27 cubic feet
Includes 1 adjustable shelf

Temperature Range
90°–160°F (Tolerance ±1°F)

Electrical
120V, 6.3 Amp, 50/60 Hz
0.45 kWh (Average)
1535 BTU/hr (Average)
