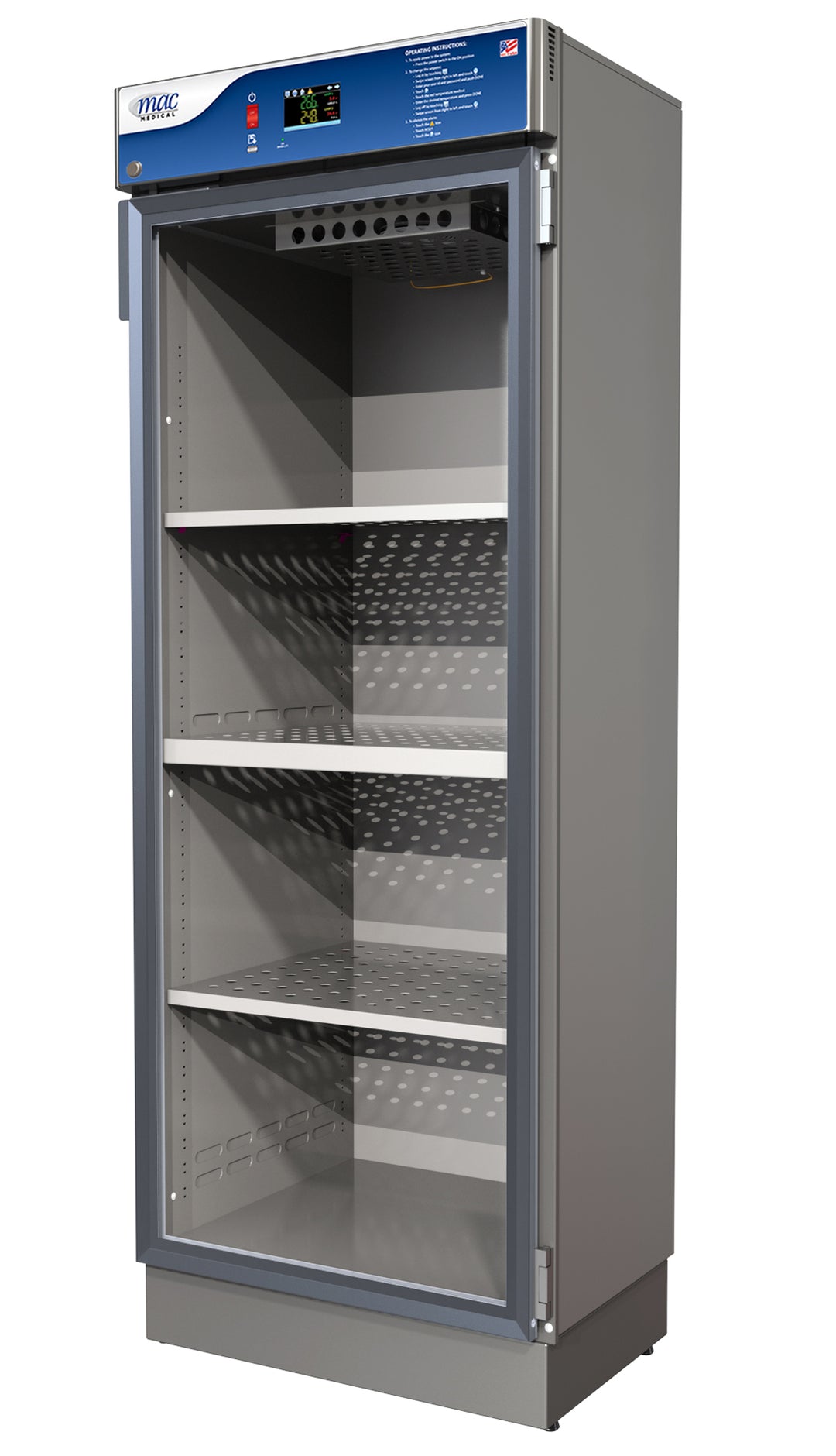

TS-SERIES Blanket & Fluid Warming Cabinets Model # SWC182474-TS

TS-Series Touch Screen Blanket & Fluid Warming Cabinet

The TS-Series Blanket & Fluid Warming Cabinet (Model SWC182474-TS) is a high-capacity, vertical warming solution designed for healthcare environments that demand advanced connectivity and reliable performance. With integrated Ethernet and Wi-Fi capability, this cabinet allows remote monitoring and control via secure network access.

Featuring an intuitive touch screen interface, comprehensive data logging, and multi-level user security, the TS-Series delivers precise temperature control while supporting compliance, traceability, and operational efficiency.

Standard Features

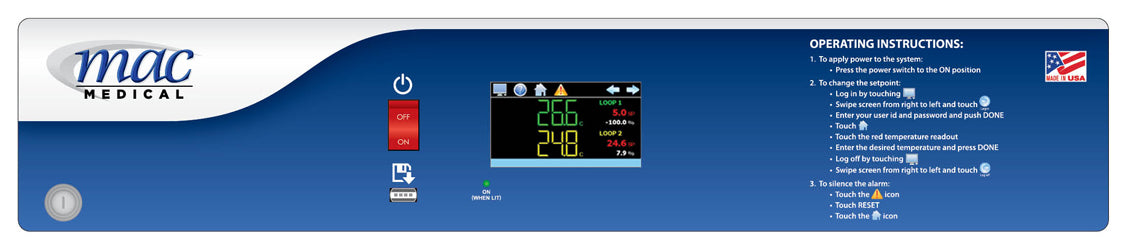

• Intuitive touch screen control interface
• Multi-language software support
• Data logging with digital signatures
• Electronic temperature lockout
• Live temperature trend viewing
• Alarm logging and notifications
• Multi-level user security
• Operator audit trail
• Built-in Ethernet connectivity
• Wi-Fi capability (router supplied by end user)
• Remote monitoring and control via VNC
• Remote technical support and diagnostics
• Text and email alarm notifications
• USB or FTP web-based file transfer
• Smartphone and device access

Optional Features

• Full-view glass door
• Left-hand door hinge
• 220/240V power supply
• Celsius temperature display
• Two recessed unit options
• Seismic braces
• Pass-through chamber
• Electronic keypad lock
• Sloping top
• Keyed door lock for lower chamber units

Accessories (Sold Separately)

• Mobile Stands
• Mobile Cabinet Stands
• Mobile Bases
• Roll Out Baskets

Specifications

Overall Size
20.5?D × 24?W × 75?H
(520.7 mm × 609.6 mm × 1905 mm)

Chamber Interior Dimensions
17?D × 20?W × 61?H
(431.8 mm × 508 mm × 1549 mm)

Storage Capacity
12.0 cubic feet
Includes 2 adjustable shelves and 1 fixed shelf

Temperature Range
90°–160°F (Tolerance ±3°F)

Electrical
120V, 6.5 Amp, 50/60 Hz
0.47 kWh (Average)
1604 BTU/hr (Average)
