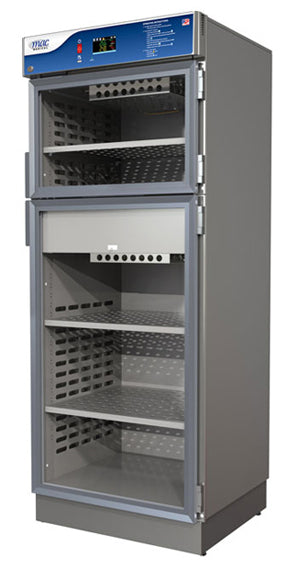

TS-SERIES Blanket & Fluid Warming Cabinets Model # DWC243074T-TS

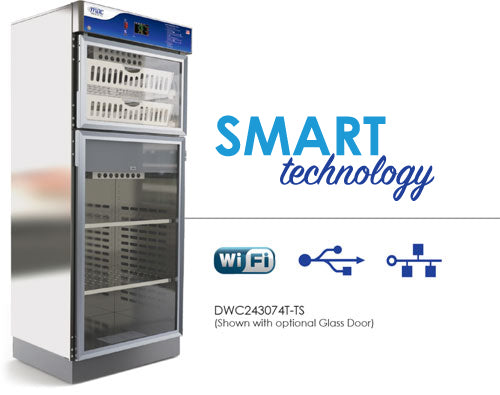

TS-Series Touch Screen Blanket & Fluid Warming Cabinet

The TS-Series Blanket & Fluid Warming Cabinet (Model DWC243074T-TS) delivers advanced dual-chamber temperature control with secure data logging and remote connectivity for modern healthcare environments.

Designed with Ethernet and Wi-Fi capability, this touch screen warming cabinet allows staff to remotely monitor temperatures, review alarms, and access diagnostics in real time. Independent chambers ensure precise warming of blankets and fluids while supporting compliance and patient safety.

Standard Features

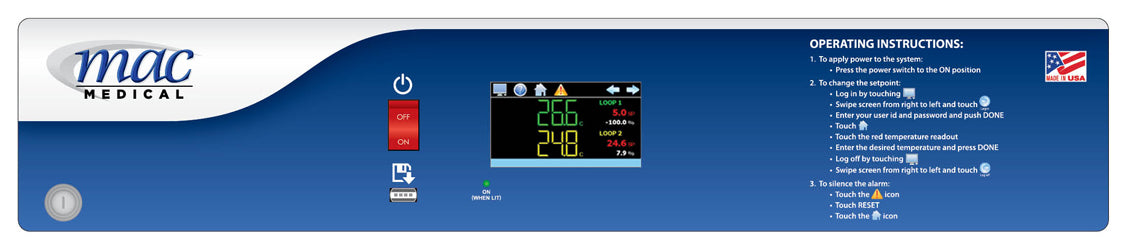

• Intuitive touch screen control interface
• Multi-language software support
• Data logging with digital signatures
• Electronic temperature lockout
• Live temperature trend viewing
• Alarm logging with alerts
• Multi-level user security
• Operator audit trail
• Built-in Ethernet connectivity
• Wi-Fi capability (router supplied by end user)
• Remote monitoring and control via VNC
• Remote technical support and diagnostics
• Text and email alarm notifications
• USB or FTP web-based file transfer
• Smartphone and device access

Optional Features

• Full-view glass door
• Left-hand door hinge
• 220/240V power supply
• Celsius temperature display
• Two recessed unit options
• Seismic braces
• Pass-through chamber
• Electronic keypad lock
• Sloping top
• Keyed door lock for lower chamber units

Accessories (Sold Separately)

• Mobile Stands
• Mobile Cabinet Stands
• Mobile Bases
• Roll Out Baskets

Specifications

Overall Size
26.5?D × 30?W × 74.5?H
(673.1 mm × 762 mm × 1892 mm)

Total Storage Capacity
17.21 cubic feet
Includes 3 adjustable shelves

Upper Chamber Interior
23?D × 26?W × 15.25?H
(584.2 mm × 660.4 mm × 387.3 mm)
5.28 cubic feet
Temperature Range: 90°–160°F (Tolerance ±1°F)

Lower Chamber Interior
23?D × 26?W × 34.5?H
(584.2 mm × 660.4 mm × 876.3 mm)
11.93 cubic feet
Temperature Range: 90°–160°F (Tolerance ±3°F)

Electrical
120V, 12.5 Amp, 50/60 Hz
0.90 kWh (Average)
3071 BTU/hr (Average)
