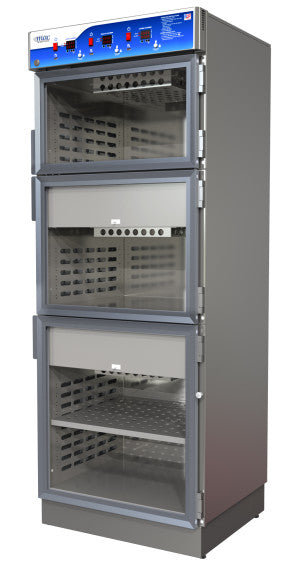

D-SERIES Blanket & Fluid Warming Cabinets Model # TWC243078

D-Series Triple Chamber Blanket & Fluid Warming Cabinet with Data Logging

The D-Series Blanket & Fluid Warming Cabinet Model TWC243078 from MAC Medical is designed for facilities requiring tiered temperature control across three independently heated chambers. Integrated USB data logging supports compliance, while precise digital controls ensure consistent warming for blankets and fluids.

Standard Features

• Integrated “Easy Log” data logger with removable USB
• Automatic temperature recording every 30 minutes
• Internal data storage for up to 2 years
• Independent digitally controlled heating chambers
• Displays actual temperature and set point at all times
• Keyed temperature lockout
• Keyed door lock for single and upper chamber units

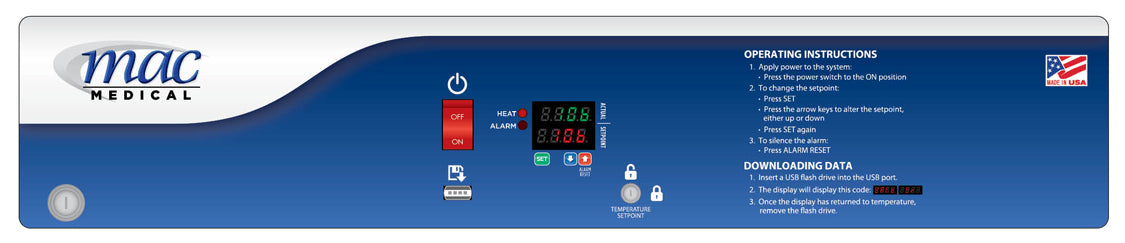

• Push-button digital operation with large display
• Rapid warm-up time (2–6 hours depending on load)
• Fully insulated cabinet for uniform heating
• Audible and visual over-temperature alarm
• Adjustable leveling feet

Optional Features

• Full-view glass door
• Left-hand door hinge
• 220/240V power supply
• Celsius temperature display
• Recessed unit configurations
• Seismic bracing
• Pass-through chamber design
• Electronic keypad lock
• Sloping top
• Keyed door lock for intermediate and lower chamber units

Accessories

• Mobile stands
• Mobile cabinet stands
• Mobile bases
• Roll-out baskets

Specifications

• Overall Size: 26.5"D x 30"W x 78.75"H
• Total Storage Capacity: 14.01 cubic feet
• Shelves: 1 adjustable shelf

Upper Chamber Specifications

• Chamber I.D.: 23"D x 26"W x 11.25"H
• Storage Capacity: 3.89 cubic feet
• Temperature Range: 90°F–110°F (±1°F)

Intermediate Chamber Specifications

• Chamber I.D.: 23"D x 26"W x 10.75"H
• Storage Capacity: 3.72 cubic feet
• Temperature Range: 90°F–150°F (±1°F)

Lower Chamber Specifications

• Chamber I.D.: 23"D x 26"W x 18.5"H
• Storage Capacity: 6.4 cubic feet
• Temperature Range: 90°F–160°F (±1°F)
