Bathing Ultima™ Access Bath Transfer and Commode

Ultima Access Transfer System

The Ultima Access Transfer System is designed to ease the effort of transferring children or adults into the tub for bathing or toileting. Featuring a supportive ComfortMesh and polyurethane seat with an open design for personal care access, the Ultima Access can also serve as a commode.

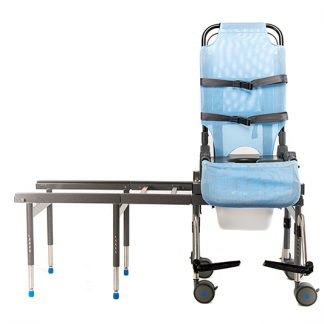

This 3-piece system includes a seat with positioning belts, a rolling base for transport, and a tub base—available in foldable or compact options. A safety interlock system ensures a secure connection between the rolling base and tub base without tools. Available in Medium and Large sizes.

Key Features

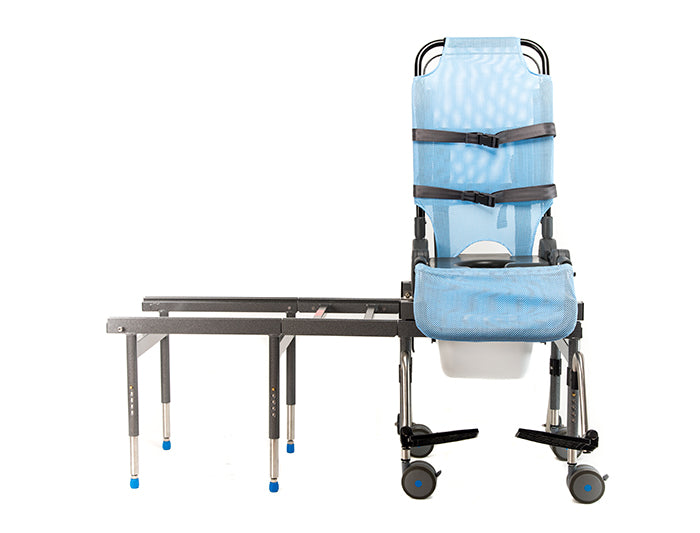

• ComfortMesh & Polyurethane Seat: Soft, bacteria-resistant materials with open access for hygiene care.

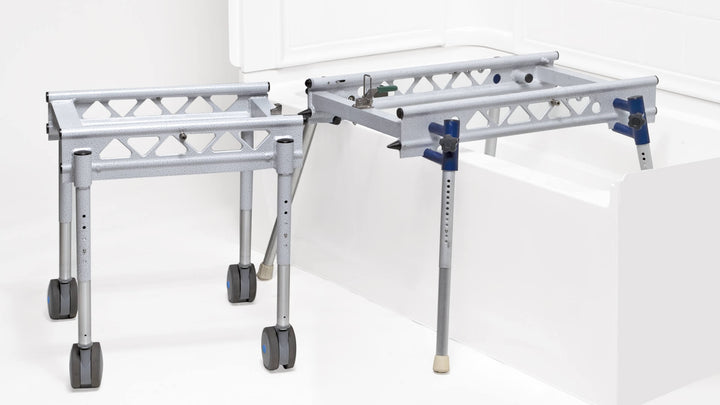

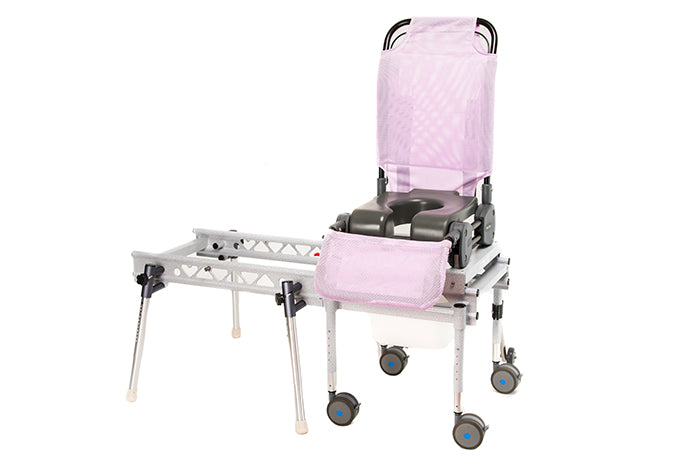

• Foldable or Compact Tub Base: Choose between foldable for storage or compact for small tub footprints.

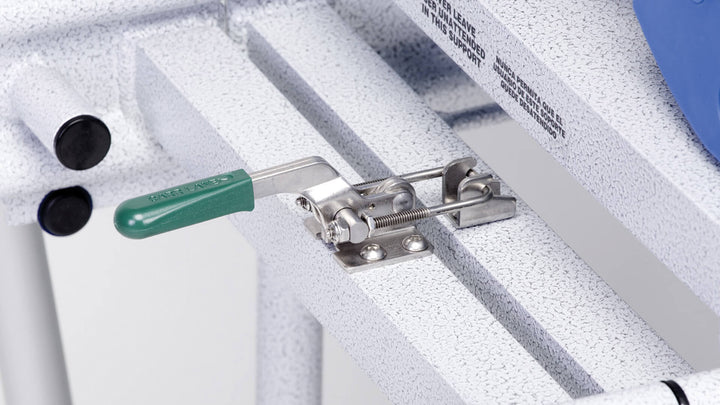

• Easy Transfer: Secure sliding connection between rolling and tub base—no tools required.
• Adjustable Angles: Adjustable seat, back, and calf angles for optimal comfort and positioning.
• Includes: Seat, rolling base, tub base, two positioning belts, and anti-tippers.

Sizing Information

• Back Angle Adjustment: 0?, 30?, 60?, 90?
• Calf Angle Adjustment: 0?, -30?, -60?
• Seat Angle (Optional Bracket): Up to 10?

Ultima Access Medium with Foldable Base (BTUAF-5130M)

• Weight Capacity: 160 lbs
• Seat Depth: 14"
• Inside Seat Width: 14"
• Back Height: 26"
• Calf Length: 13.5"
• Seat Height Range: 26" – 30"
• Rolling Base Dimensions: 21.5" W x 21" D
• Tub Base Footprint: 28" – 30" W x 31" – 33" D
• Tub Base Clearance Height Range: 13.5" – 19" (0.5" increments)
• Overall Length: 52"

Ultima Access Large with Foldable Base (BTUAF-5140L)

• Weight Capacity: 180 lbs
• Seat Depth: 17"
• Inside Seat Width: 16"
• Back Height: 30"
• Calf Length: 15.5"
• Seat Height Range: 26" – 30"
• Rolling Base Dimensions: 21.5" W x 21" D
• Tub Base Footprint: 28" – 30" W x 31" – 33" D
• Tub Base Clearance Height Range: 13.5" – 19"
• Overall Length: 52"

Ultima Access Medium/Large with Compact Base (BTUAC-5131M / BTUAC-5141L)

• Same specs as Foldable Base versions except non-folding compact base with all legs inside the tub.

Ultima Access Medium/Large with Attached Rolling Base (BTUAC-5135M / BTUAC-5145L)

• Seat Height Range: 23.5" – 27.5"
• Rolling Base Dimensions: 21" W x 19" D
• Rolling Base Clearance Height: 17" – 21"
• No tub base required for this model

Accessories

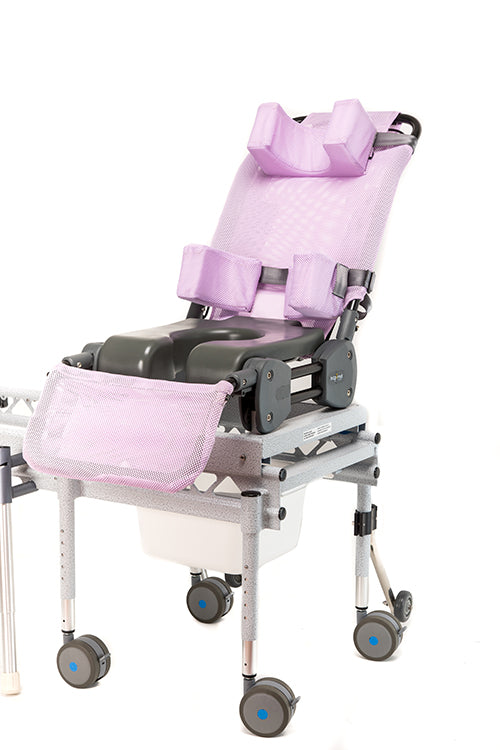

• Head Support (BCZ-A8875): $170.50 – Foam cushion for enhanced head positioning.
• Lateral Trunk Support (BCZ-A8830): $170.50 – Adds torso support to chair base.
• Positioning Belt (BCZ-A8835-G): $71.50 – Improves posture and safety, standard gray.

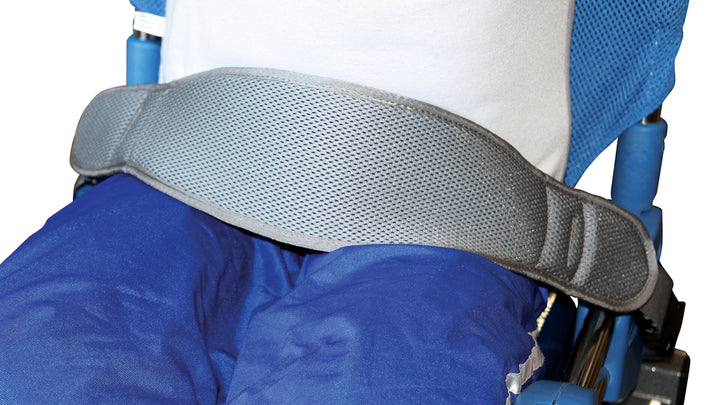

• Rapid-Dry Pelvic Belt (BCZ-A8836): $269.50 – Available in 4" and 5" widths, dries fast.
• Detachable Armrests (BTZ-A5051): $534 – Four adjustable height levels for added comfort.
• Seat Angle Bracket (BTZ-A5126): $120 – Adds height and improves pelvic positioning.
• Open-Front Vinyl Seat (BTUA-A5566 M/L): $748 – Accepts hip positioning supports.
• Lateral Seat Pads (BTUA-A5581 M/L): $215–$236.50 – For swing-away bracket use.
• Adjustable Bridge (BTV-A5104 / A5105): $895 – Extends to 17¾" or 21¾", for Compact Base only.
• Fixed Bridge (BTV-A5109 / A5111): $465–$530 – Available in 9" or 11", for Compact Base only.
• Footrests (BTZ-A5125 / A5525): $360 – Flip-up, choose 22° or 90° footplate angles.
• Pelvic Belt (BCZ-A8834): $100.16 – Additional belt for improved stability.
